Positive photo resist

2. KL 7000 Photoresist for IC fabrication
ㆍ  PFAS-Free Positive Photo Resist
ㆍ  CD: 0.55 μm
Thickness: 0.15 μm - 2.5 μm
ㆍ  Application: IC fabrication, interference or holographic lithography, diffraction grating
ㆍ  저렴한 가격. 0.5 L, 1 L, 4 L 이외 용량 선택 가능
KL 7000 PFAS-Free Positive Photo Resist for IC fabrication
Description
Features
 - KL 7000 series are positive photoresists for use in i-line, g-line
  and broadband applications.
 - KL 7000 offers high sensitivity, and high throughput suitable for
  IC fabrication.
 - The KL7000 system is engineered to contain no PFAS and
  no Fluorine containing materials for environmental safety and
  demanding regulatory compliance.
 - Designed for use with industry standard MIF and MIB developers;
  optimized for 0.26N TMAH.
 - Achieve resolution 0.55 μm dense line/space and
  0.40 μm isolated line.
 - Competes with S1800™, AZ®1500, and other general use
  positive tone photoresist.		 - Tone: Positive.
 - Film Thickness: 0.15 - 3.0 μm.
 - Sensitivity: NUV, Broadband, i-line, h-line, g-line.
 - Developer: TMAH-based.
 - Remover: NMP, DMSO at 50–80 °C.
 - Products: KL 7002-TF, KL 7005, KL 7010, KL 7015, KL 7020.

Description
ProductFilm Thickness
Range (micorns)		Softbake Exposure
Broadband/NUV on Si		Post Exposure Bake (PEB)Develop 0.26N TMAHHardbake Recommended
 KL 7002-TF0.15 - 0.30 μm105°C
for 1 min		50 mJ/cm2115°C
for 1 min		30 secs
immersion		110°C
for 1 min
 KL 70050.4 - 1.0 μm30 mJ/cm2
 KL 70100.7 - 1.5 μm35 mJ/cm2
 KL 70151.2 - 2.5 μm40 mJ/cm2
 KL 70201.5 - 3.0 μm45 mJ/cm2

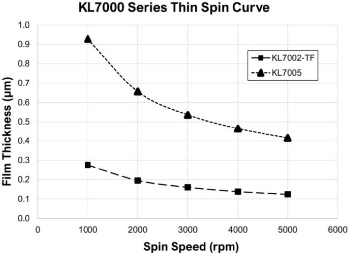

KL 7000  Series Thin Spin Curve

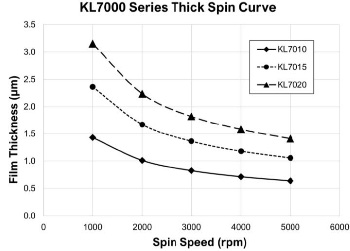

KL 7000  Series Thick Spin Curve

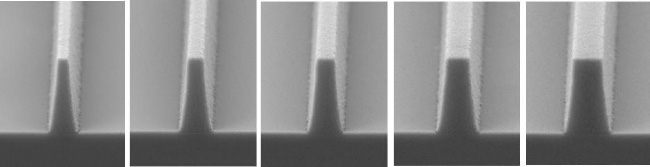

Process results
1.5 μm film thickness
CD: 0.55 μm

    Exposure: 100 mJ i-line Stepper, NA=0.55
Related Products (Guide for Kemlab Positive Photoresists)
