Photo resist

2. PSC-IB DPM 1010
ㆍ  Protective Surface Coating for dicing process.
ㆍ  판매 용량: 1 L, 4 L, 16 L 이외.

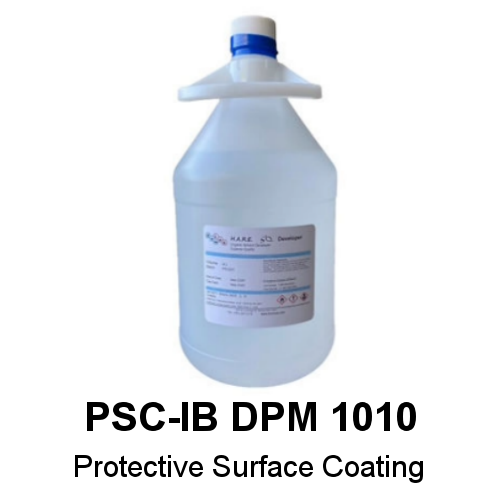

PSC-IB DPM 1010
Description
Process Gudelines
 - Protective surface coating.
 - Film Thickness: 10 μm at 2000 RPM..
 - Protection of dicing process. 		 - Coat – 2000 rpm for 45 sec = 10 micron Film Thickness.
 - Bake – 105 oC for 2 – 4 minutes.
 - Strip – Industry Standard (NMP-based, acetone-based, O2 plasma, etc.)
